DUMPMASTER

Bin Lifters

Dumpmaster

$2,000.00

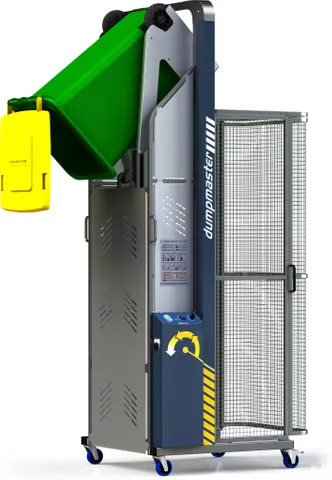

Dumpmaster™ Hydraulic Wheelie Bin Lifter

Dumpmaster wheelie-bin tippers are the ultimate solution to empty bins and drums weighing up to 300kg at virtually any height. The tipping action of a Dumpmaster is one of the safest, most efficient, and easiest to use systems in the world.

Dumpmasters are highly versatile and can be used in numerous applications, ranging from emptying rubbish bins into skips to pouring food ingredients into hoppers or mixers.

No matter what the application, Dumpmasters have proven to be safe, reliable and economical to operate, year after year.

Dumpmaster bin lifters have a unique tipping action whereby bins are lifted straight up, and then gently rolled forward around the lip of the skip or hopper being emptied into.

If you need bin-lifters that accommodate wider or heavier bins have a look at our MegaDumper Series.

Features

a very small ‘footprint’
a wide range of tipping heights (from 700mm to 6 metres or more).
Dumpmasters may be mounted on four castors with no loss of stability.
A huge weight capacity of up to 250kg (or 300kg with small modifications). If you can get the bin to it, a Dumpmaster will lift it!
The basic design can be modified to suit a wide range of bin sizes, shapes, and weights.
Standard Dumpmasters have a galvanised frame and cradle, and are virtually maintenance-free.
Standard drums and bins do not require clamping – simply place on the cradle and press the ‘Raise’ button.
Dumpmasters can be fitted with multi-purpose cradles which can empty wheelie bins of all standard sizes from 80 to 240 litre bins or even 80 to 360 litre bins with no adjustment.
Dumpmasters are Electric-Hydraulic bin tippers and are offered with a choice of 1-phase, 3-phase, battery or air-operated hydraulic power packs. (Note: Air-operated systems are generally for use in hazardous environments only)

Options

Power supply: 1-phase, 3-phase, battery, or compressed air
Full or partial stainless steel construction
Corrosion-resistant nickel-plated lifting chain
Frame-mounted tip chute
Bin hook kit to secure machine in position
Cradles to suit any type of bin or drum
Swing-up, left-hinge or right-hinge door
Category-3 Safety Certification
E-Stop button and master lockout switch
Dual side covers and controls
‘Door end’ controls
Polycarbonate splash shield
Unbreakable PET-G guarding
25mm fine mesh guarding
Steel front guard panel
Foot guard panels
Certified door latch
Auto-cycle controller
Solar panel
Digital scales

Specifications

Dumpmaster Specifications
Model (SKU)	DM1200	DM1500	DM1800	DM2100	DMXXXX (Custom)
Tipping Height	1200mm	1500mm	1800mm	2100mm	XXXXmm
Guarding Height	2200mm
Height	2260mm	2560mm	2860mm	3160mm	XXXX + 1060mm
Length (door closed)	1171mm
Length (door open)	1834mm
Width	964mm
Weight	~205kg	~220kg	~235kg	~250kg	~XXXX * 0.05 + 145kg
Max Bin Weight	250kg
Cradle Compatibility	60L, 80L, 120L, 140L, 240L, 360L wheelie bins (Options: custom cradle)
Bin Throw	100mm
Electrical Specifications – Battery	2x 12v 21Ah sealed gel batteries in series configuration, driving 0.8kw DC motor drawing 60 Amps, with 24v DC control voltage
Electrical Specifications – Single-Phase	240v AC 50/60hz 1-phase mains supply, driving 0.75kw AC motor drawing 1.9 Amps via VSD (Variable Speed Drive controller), with 24v DC control voltage
Electrical Specifications – Three-Phase	400v AC 50/60hz 3-phase mains supply, driving 0.75kw AC motor drawing 1.9 Amps, with 24v DC control voltage
User Interface	Raise/Lower buttons, key switch, battery indicator, master lockout switch (Options: E-stop button, VSD control lever)
Ingress Protection	IP55 (Options: IP56, IP69K)
Guarding	25x25x2.5 wire mesh (Options: transparent PET-G, 1.6mm sheet metal, sheet stainless steel)
Corrosion Protection	Hot-dip galvanised frame, galvanised cradle, zinc-plated guards (Options: stainless steel)
Door	Left-hinged door (Options: right-hinged door, swing-up door with gas strut assist)
Door Lock	Solenoid-operated electrical safety interlock
Wheels	⌀100mm Blue Resilex castors (Options: ⌀200mm castors, bolt-down lugs)
Applicable Standards and Certifications	AS/NZS4024, ISO 13849-1, IEC 62061, Conformité Européene (CE), EN 349 1993, EN 574 1996+A1:200, EN 953 1997, EN ISO 4413 2010, EN ISO 12100 2010, EN ISO13849-1 2006, EN ISO 13857 2008, EN 60204 2006+A1 2009, EN61000-6-2 2005, EN61000-6-4 2007, Machinery Directive 2006/42/EC, Electromagnetic Compatibility Directive 2004/108/EC

Technical Specifications

Dimensions (mm)

A Total Height ~ 625
B Bin Height ~ 585
C Bin Depth ~ 460
D Total Depth ~ 497
E Width ~ 444
F Handle Width ~ 440
G Wheel Diameter ~ 200

Volume

Nominal Volume (L) 60
Empty Weight (kg) 6.19
Max. Filling Weight (kg) 24
Max. Total Weight (kg) 30.19

The SULO Difference

Long Service Life

High quality materials
Most advanced manufacturing processes
Withstands exposure to high mechanical stress levels
Engineered to withstand Australian conditions
Resistant to decay, frost, heat, and chemicals

Noise Reduction

Quiet-running solid rubber tyres
Tight-fitting axle
Corrosion resistant steel axle

Sustainably Made

Made from up to 100%** recycled content
100% recyclable at end of life
Manufactured on start-of-the-art energy efficient machinery
Made in Australia, from Australian recycled resin

^{**Recycled content depends on bin colour and excludes lid, wheels and axles}

Customisation

Manufacturer, year of manufacture, material
Nominal volume, max permitted total weight
Individual markings with imprints, hot-foil printing or adhesive labels*
Customer specific serial numbers if required*

^{*minimum batch quantities required}

Quality Assurance

Made in Australia
Manufactured in accordance to AS4123
Manufactured in accordance to EN840

Contact Us

Contact us today to conduct an audit of your municipality and advise how your council can transition to one of Australia’s most sustainable bins.
