MULTI-TIP

Bin Lifters

Multi-Tip

$2,000.00

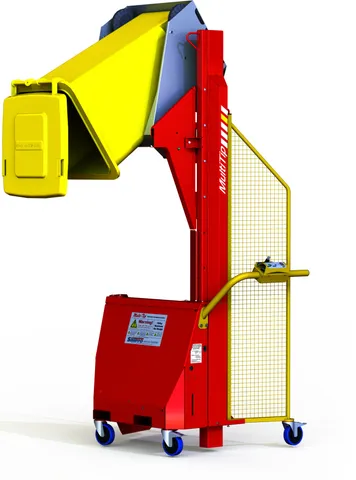

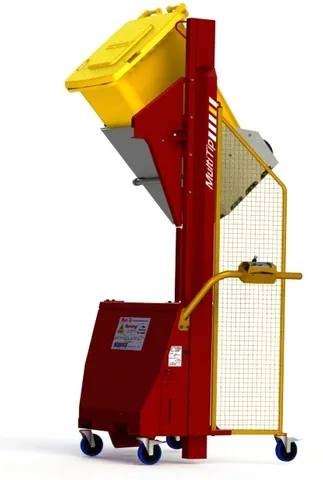

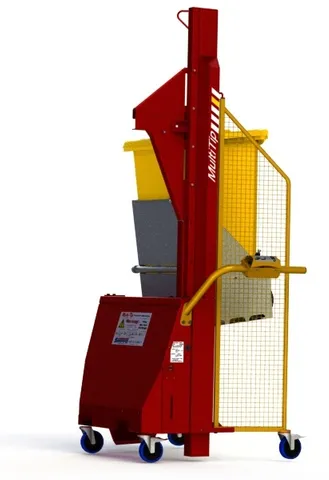

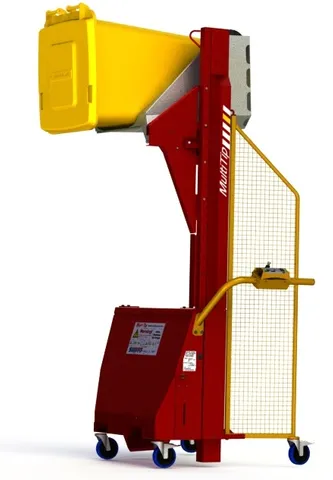

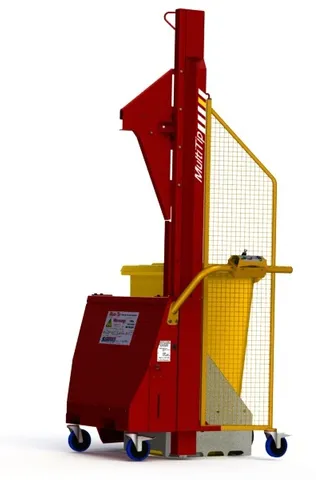

Multi-Tip™ Hydraulic Wheelie Bin Lifter

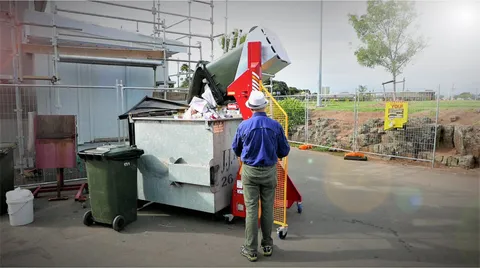

The Multi-Tip bin-tipper from ASK Equipment Sales is everything a bin tipper should be – safe, economic, easy to use, versatile, and efficient. Perfect for light industrial use to empty bins at schools, factories, recycling centres and more.

Features

150kg capacity
Standard cradle designed for 240 litre MGB wheelie bins. Optional bolt-on spring-loaded catch kits enable 80l, 120l, & 140l bins to be emptied as well.
Cradles to suit plastic and steel drums, rectangular bins and many other
containers can be simply fitted or exchanged.
Available in 2 standard tipping heights – 1200mm and 1600mm.
Multi-Tip bin tippers are available with 1-phase, 3-phase, or battery power
packs. Battery-powered tippers have a sealed battery and an industrial-quality ‘float’ charger built in.
Both hands are needed to operate the machine.
Multi-Tip bin-lifters require no regular maintenance, and are robustly built yet light and easy to move around.
Multi-Tip bin lifters are designed to be safe to use, with all operating components fully enclosed.This also allows the unit to be operated indoors or outdoors.
The standard cradle holds 240 litre MGB wheelie bins, but a range of bolt-on adaptor brackets is available to enable 80l, 120l, & 140l bins, plastic and steel drums, rectangular bins to be emptied as well, all weighing up to 150kg.
Cradles to suit many other containers can be simply fitted or exchanged.

Options

Stainless steel construction.
Cradles to suit almost any size and shape of bin.
Solar panel to charge the battery. Up to 30 bins per day can be emptied using the power of the sun only. Obviously this depends on the hours of direct sunlight per day, and the weight of the bins.

Specifications

Multi-Tip Specifications
Model (SKU)	MT1200	MT1600
Tipping Height	1200mm	1600mm
Height (cradle lowered)	1995mm	2380mm
Height (cradle raised)	2240mm	2660mm
Length	879mm
Width	1237mm
Weight	~150kg	~160kg
Max Bin Weight	150kg
Cradle Compatibility	60L, 80L, 120L, 140L, 240L, 360L wheelie bins (Options: custom cradle)
Bin Throw	> 100mm
Electrical Specifications – Battery	12v 21Ah sealed gel battery, driving 0.8kw DC motor drawing 100 Amps, with 12v DC control voltage
Electrical Specifications – Single-Phase	240v AC 50/60hz 1-phase mains supply, driving 0.75kw AC motor drawing 1.9 Amps via VSD (Variable Speed Drive controller), with 24v DC control voltage
Electrical Specifications – Three-Phase	400v AC 50/60hz 3-phase mains supply, driving 0.75kw AC motor drawing 1.9 Amps, with 24v DC control voltage

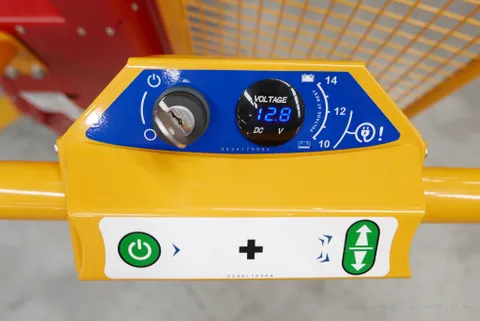

User Interface	Raise/Lower buttons, Safety button, key switch, battery indicator, master lockout switch (Options: VSD control lever)
Ingress Protection	IP55 (Options: IP56, IP69K)
Guarding	25x25x2.5 wire mesh
Corrosion Protection	Powder-coated frame, zinc-plated cradle and guards (stainless steel optional)
Wheels	⌀100mm Blue Resilex castors (Options: ⌀200mm castors, pneumatic tyres, bolt-down lugs)
Applicable Standards and Certifications	AS/NZS4024, ISO 13849-1, IEC 62061, Conformité Européene (CE), EN 349 1993, EN 574 1996+A1:200, EN 953 1997, EN ISO 4413 2010, EN ISO 12100 2010, EN ISO13849-1 2006, EN ISO 13857 2008, EN 60204 2006+A1 2009, EN61000-6-2 2005, EN61000-6-4 2007, Machinery Directive 2006/42/EC, Electromagnetic Compatibility Directive 2004/108/EC

Technical Specifications

Dimensions (mm)

A Total Height ~ 625
B Bin Height ~ 585
C Bin Depth ~ 460
D Total Depth ~ 497
E Width ~ 444
F Handle Width ~ 440
G Wheel Diameter ~ 200

Volume

Nominal Volume (L) 60
Empty Weight (kg) 6.19
Max. Filling Weight (kg) 24
Max. Total Weight (kg) 30.19

The SULO Difference

Long Service Life

High quality materials
Most advanced manufacturing processes
Withstands exposure to high mechanical stress levels
Engineered to withstand Australian conditions
Resistant to decay, frost, heat, and chemicals

Noise Reduction

Quiet-running solid rubber tyres
Tight-fitting axle
Corrosion resistant steel axle

Sustainably Made

Made from up to 100%** recycled content
100% recyclable at end of life
Manufactured on start-of-the-art energy efficient machinery
Made in Australia, from Australian recycled resin

^{**Recycled content depends on bin colour and excludes lid, wheels and axles}

Customisation

Manufacturer, year of manufacture, material
Nominal volume, max permitted total weight
Individual markings with imprints, hot-foil printing or adhesive labels*
Customer specific serial numbers if required*

^{*minimum batch quantities required}

Quality Assurance

Made in Australia
Manufactured in accordance to AS4123
Manufactured in accordance to EN840

Contact Us

Contact us today to conduct an audit of your municipality and advise how your council can transition to one of Australia’s most sustainable bins.
